Customizable Defensive Hesco Barrier in different Sizes with Negotiable Price
Designed for reliable protection across military, security, and industrial scenarios, our Customizable Defensive Hesco Barrier combines rugged durability with flexible customization to meet your unique defensive needs. Whether you’re securing a military base, fortifying critical infrastructure, or establishing perimeter defense for high-risk areas, this barrier delivers uncompromising performance—with the added flexibility of tailored sizes and negotiable pricing for bulk orders.
Crafted from high-grade galvanized steel mesh and UV-resistant non-woven geotextile, our Hesco barrier is engineered to withstand extreme conditions and physical impacts. The robust steel frame ensures structural stability, while the dense geotextile lining prevents soil or gravel leakage, maintaining integrity even under heavy load or harsh weather. It effectively blocks projectiles, shrapnel, and unauthorized access, making it ideal for defensive perimeters, blast protection, and crowd control in high-security settings.
- City Protection: During the 2019 Watertown, South Dakota floods, Hesco barriers were deployed to safeguard the city from rising waters
- Mobile Home Parks: In Iowa City, a mile-long Hesco flood wall was installed to protect Cole and Thatcher Mobile Home Parks
- Airport Security: Bangkok's Don Mueang Airport used Hesco barriers during severe flooding, erected by the Royal Thai Army
- Urban Infrastructure: Many cities use them to protect utilities, subway entrances, and critical infrastructure during flash floods
- Waterfront Homes: Protect properties from shoreline erosion, reducing soil loss by up to 90%
- Riverbanks: Tested effective on 35° inclines, stabilizing slopes prone to washing away
- Marsh & Beach Protection: The original design purpose (created by British ex-miner Jimi Heselden) was for coastal erosion control
- Lakeside Development: Used to prevent shoreline collapse in residential areas along lakeshores
- Worksite Perimeters: Create secure fencing around construction sites that resists wind and falling debris
- Sound Barriers: Instant noise reduction walls along residential construction zones
- Traffic Management: Temporary barriers for highway construction, directing vehicles safely around work zones
- Industrial Safety: Separate hazardous zones in manufacturing plants while containing pollutants
- Warehouse Protection: Defend storage facilities from flood damage during rainy seasons
| Attribute |
Value |
| Raw Material |
Hot dipped galvanized wire |
| Geotextile |
250 - 300 g/㎡ Standard |
| Mesh Diameter |
4.0 / 5.0mm Diameter |
| Aperture |
3" (76.2mm×76.2mm) |
| Color |
Military Green, sand color |
| Accessories |
Staple, Joint Pin |
| Brand |
KESCO, not HESCO |
| Sample |
Free sample available |
| Stock |
Some types in stock - welcome to inquire |
The Hesco Barrier Guard Tower is constructed from galvanized welded boxes, combining rectangular mesh wire with canvas-draped panels to create versatile base defense structures. These units serve as essential building blocks for military and police security installations.
Designed for rapid deployment, these barriers can be installed by just 2-3 personnel, making them ideal for creating shelters or guard towers quickly in field conditions.
Standard Technical Specifications (KN1 to KN19)
| Model |
Height |
Width |
Length |
| KN-1 |
54" (1.37M) |
42" (1.06M) |
32'9" (10M) |
| KN-2 |
24" (0.61M) |
24" (0.61M) |
4' (1.22M) |
| NK-3 |
39" (1.00M) |
39" (1.00M) |
32'9" (10M) |
| KN-4 |
39" (1.00M) |
60" (1.52M) |
32'9" (10M) |
| KN-5 |
24" (0.61M) |
24" (0.61M) |
10' (3.05M) |
| KN-6 |
66" (1.68M) |
24" (0.61M) |
10' (3.05M) |
| KN-7 |
87" (2.21M) |
84" (2.13M) |
91' (27.74M) |
| KN-8 |
54" (1.37M) |
48" (1.22M) |
32'9" (10M) |
| KN-9 |
39" (1.00M) |
30" (0.76M) |
30' (9.14M) |
| KN-10 |
87" (2.21M) |
60" (1.52M) |
100' (32.50M) |
| KN-11 |
48" (1.22M) |
12" (0.30M) |
4' (1.22M) |
| KN-12 |
84" (2.13M) |
42" (1.06M) |
108' (33M) |
| KN-19 |
108" (2.74M) |
42" (1.06M) |
10'5" (3.18M) |
Primary Applications of Welded Gabion Barrier
Key Advantages of Welded Defensive Barriers
1. Extended Lifetime:
Constructed from galvanized, rust-protected alloy wire mesh with a guaranteed minimum lifespan of 5 years in exposed environments and 10 years when stored properly.
2. Collapsible Design:
Mesh panels connected by spring joints allow 360° rotation, enabling compact storage and transportation while maintaining structural integrity.
3. Superior Protection:
Combination of heavy-duty mesh panels with thick geotextile fabric creates exceptionally strong protective barriers for various applications.

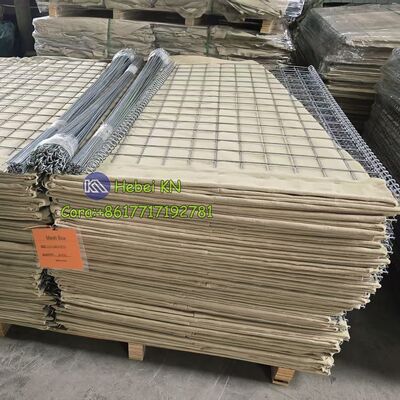

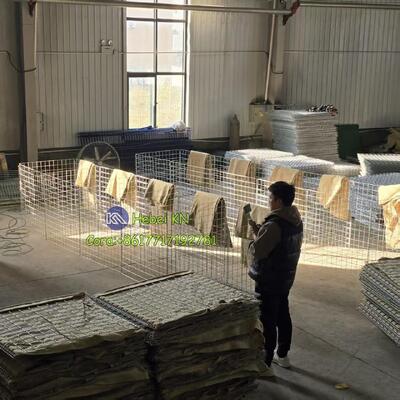

Product & Manufacturing Showcase
